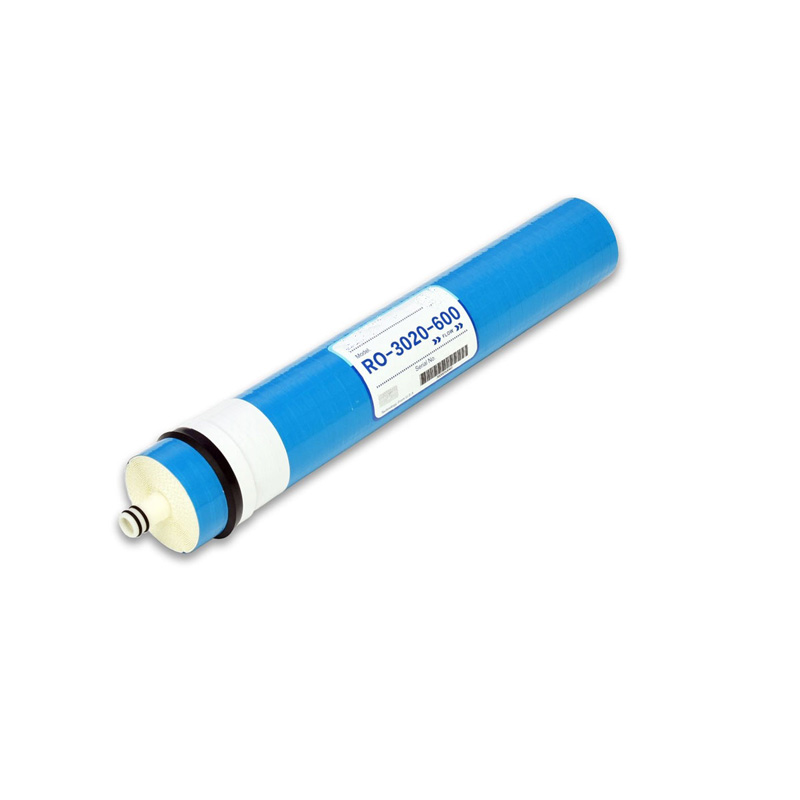

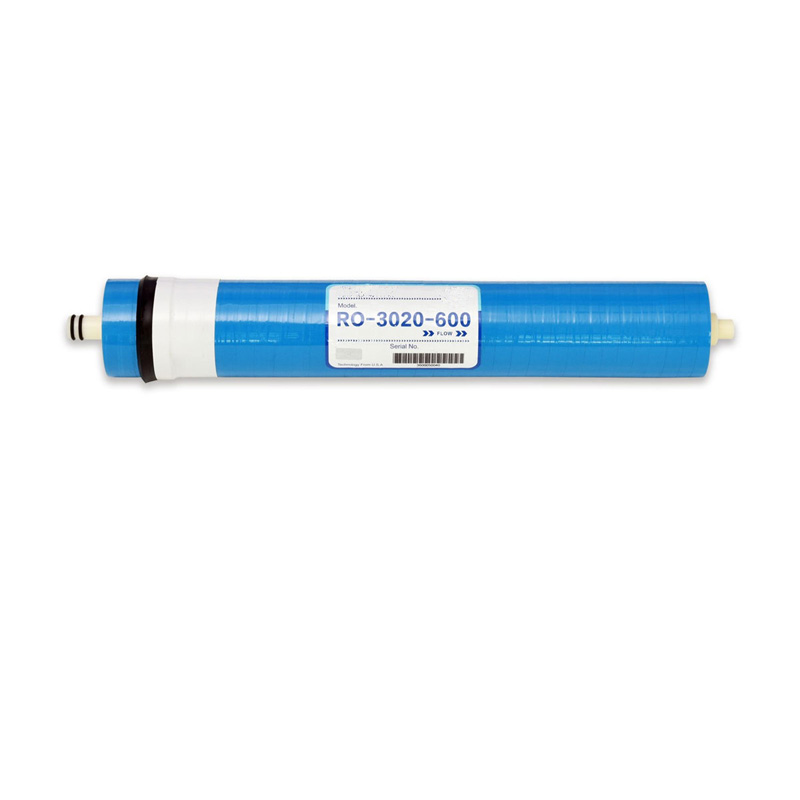

Residential Series RO Membrane Element-RO-3020-600
Product Categary:Residential Membrane Element
Main Feature:High rejection rate and low working pressure.
Tel: +86-13699279286 (Whatsapp)
Email： info@scclearpure.com
It is widely applicable to household water purification, direct drinking in building or office and other small water purification equipment etc.
Specifications & Parameters
| Model | Active Mebrane Area ft2 (m2) | Permeate Flow GPD(m3/d) | Stable Rejection Rate (%) | Minimum Rejection Rate (%) |
RO-3020-600 | 27.0(2.51) | 600(2.27) | 94% | 98% |
Standard Test Condition
| Test Methods | Concentration of Solution (NACL) | Temperature (℃) | pH Value | Operation Pressure PSI (MPa) | Recovery Rate (%) |
A | 500mg/L | 25 | 7.5-8 | 100(0.69) | 50 |
B | 250mg/L NaCl | 25 | 7.5-8 | 100(0.69) | 20-30 |
Notes: The permeate flow of single membrane element may vary with in ±15%.
Operating Limits and Conditions of Membrane Element:
| Max.Working Pressure | 300 psi(2.07MPa) |
Max. FeedWater Temperature | 45 ℃ |
Max. FeedWaterSDI15 | 5.0 |
Free Chlorine Concentration of FeedWater | 0.1mg/L |
pH Range of Feed Water During Continuous Operation | 3-10 |
pH Range of FeedWaterDuring Chemical Cleaning | 2-12 |
Max. Pressure Drop of Single Membrane Element | 10psi(0.07Mpa) |
