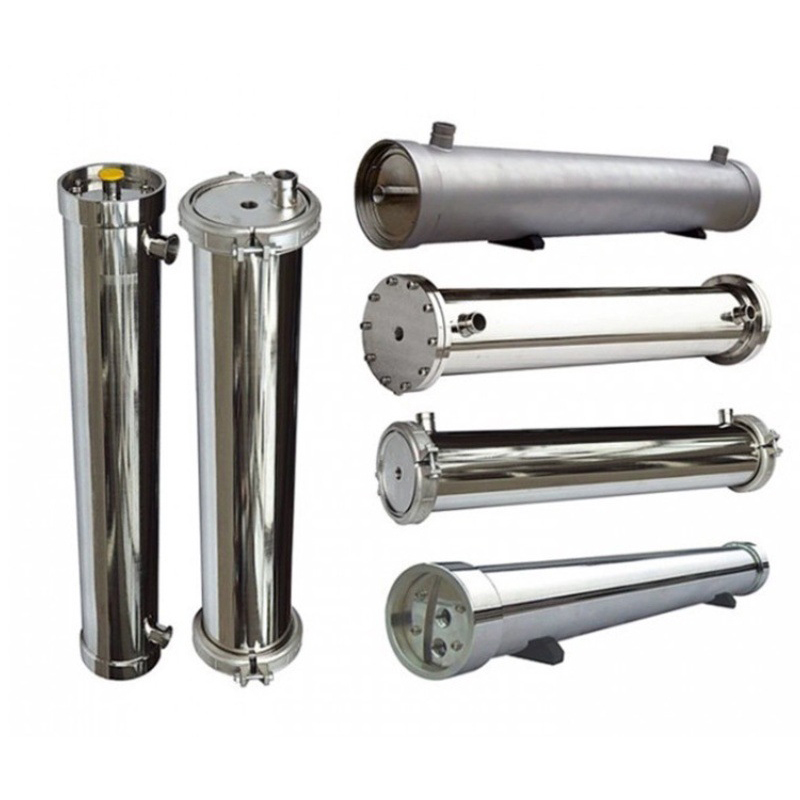

304/316 stainless steel RO membrane housing 4040
Pressure resistance: 2.0-2.5MPa
Inlet method: Inlet at both ends, inlet on both sides
Structure: Standard spare parts, easy and fast disassembly
Sealing: Tested for pressure resistance
Organizational structure at both ends: clamp type, card type, internal spring type.
Performance characteristics: The 4040 membrane shell is available in two types: seamless and seamless, and is made of SUS304 or SUS316(L) stainless steel. Both ends are sealed with ABS heads and silicone O-rings, which have high sealing performance and long service life.
The 4-inch RO membrane housing: as 1-core, 2-core, 3-core, and 4-core
Membrane housing tubes: slotted tubes and seamless tubes
Connection methods for inlet and outlet: side inlet and outlet, end inlet and outlet

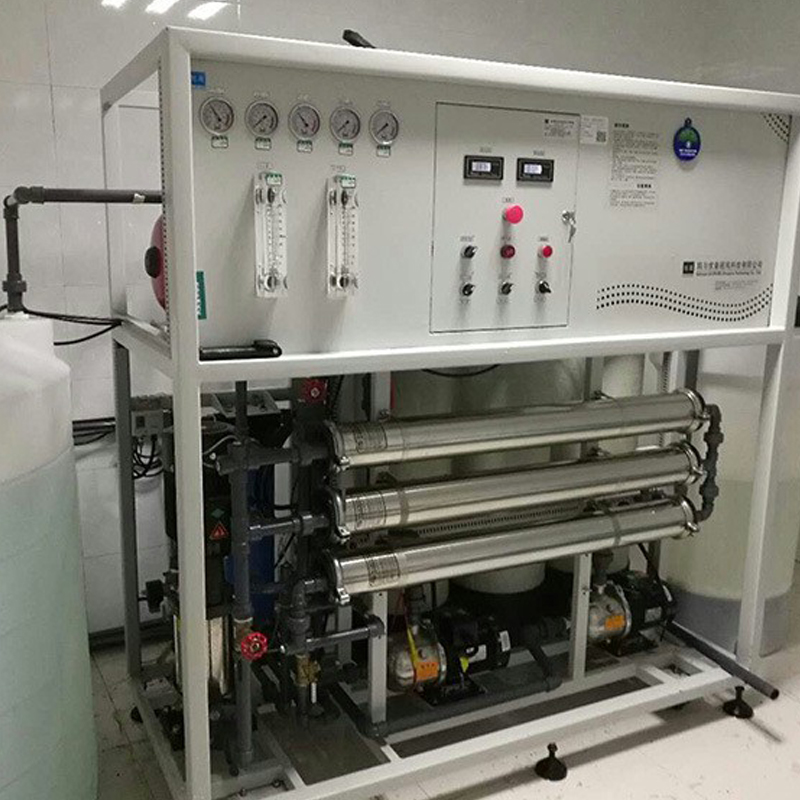

Membrane housing, also known as membrane pressure vessel, is a supporting product for reverse osmosis.It is made of 304/316(L) stainless steel tube, and the inner and outer surfaces of the membrane shell are polished. Strong pressure resistance, both ends are sealed with ABS heads and silicone O-rings for high sealing performance and long service life
End opening and clamp type Tube material: Stainless steel 304 or 316(L) Tube type: welded with seams, seamless forming End cap material: ABS engineering plastic, stainless steel Maximum pressure resistance: 250psi Inlet: 3/4 "thread Water outlet: 1/2 "thread
The membrane housing comes in various specifications such as 1-core, 2-core, 3-core, etc Material includes 304 stainless steel and 316 stainless steel Membrane housing tubes are divided into two types: slotted tubes and seamless tubes Welded pipes are automatically formed by welding, with uniform and smooth welds, and mirror finish on the inner and outer surfaces. Before leaving the factory, they undergo a pressure test with a pressure of up to 20kg.
Seamless pipes are directly pulled out with forged blanks, with uniform wall thickness and no easy water leakage. The inner and outer surfaces are treated with mirror finish, and a pressure test is conducted before leaving the factory, with a pressure of up to 30kg.
There are two connection methods for inlet and outlet: side inlet and outlet, and end inlet and outlet; Head materials include ABS and stainless steel
